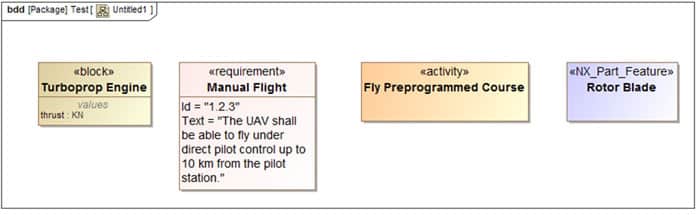

Quiz 3.0 Welcome to your Quiz 3.0 Name: Email 1. What type of diagram is this above? a) Block Definition Diagram b) Internal Block Diagram c) Requirements Diagram d) Package Diagram None 2. What SysML element owns this diagram? a) UAV Model PKG b) Unmanned Aerial System Domain c) Data d) UAV Requirement None 3. Which statement is correct? a) UAV Domain contains UAV Use Cases b) UAV Domain references UAV Use Cases c) UAV Domain has a part property of type UAV Use Cases d) UAV Domain imports UAV Use Cases None 4. The proper lexical form for the element circled in red is a) UAV Domain::UAV Use Cases b) UAV UC::UAV Use Cases::UAV Domain c) UAV Use Cases::UAV Domain:: UAV UC d) UAV Domain::UAV Use Cases::UAV UC None 5. Which statement is incorrect? a) Package diagrams help users navigate an unfamiliar model. b) Package diagrams can show a wide variety of SysML element types c) Package diagrams can include containment relationships. d) Package diagrams create name spaces. None 6. The labels in double angle brackets at the top of each symbol represent_______. a) Profiles b) Elements c) Model Libraries d) Stereotypes None 7. Profiles and Model Libraries are usually developed collectively because _______. a) they need to be shared across the organization b) every modeler needs a different set c) intellectual property can be better protected d) experts can correct novice modelersโ mistakes None 8. What type of diagram was shown? a) Block Definition Diagram b) Package Diagram c) Use Case Diagram d) Actor Diagram None 9. Which of the following is true about the diagram? a) Both Observer and UAV are actors. b) Observer is an actor and UAVis a block c) Both Observer and UAV are blocks. d) Observer is an actor and UAVis a use case None 10. Which of the following is true about the diagram? a) Emergency Response Services is not an Actor. b) Many Observers may monitor a natural disaster c) One Observer may monitor many natural disasters d) An Observer can fly the UAV manually None 11. What is not a question a use case diagram answers? a) What is the scope of the system of interest? b) Who are the users? c) How does the user communicate with the system? d) What does the system do for the users? None 12. The open triangle arrowheads in this diagram represent _______ a) composition b) inheritance c) association d) aggregation None 13. What conclusion can be drawn from the diagram? a) Observer performs the functions in the following order: Monitor Flood, Monitor Forest Fire, Monitor Earthquake Damage b) Observer performs Monitor Flood, Monitor Forest Fire, and Monitor Earthquake Damage simultaneously c) Flood, Forest Fire, and Earthquake Damage are three types of Natural Disasters the UAV can monitor d) Observer cannot monitor Natural Disasters and Emergency Scenes at the same time None 14. What conclusion can be drawn from the diagram? a) Run Diagnostics accompanies the Fly under Manual Control use case b) Run Diagnostics is part of the Fly under Manual Control use case c) Run Diagnostics is performed after the Fly under Manual Control use case d) Fly under Manual Control or Fly Autonomously can include Run Diagnostics, but not both None 15. What otherconclusion can be drawn from the diagram? a) Return to Base Autonomously always occurs b) Return to Base Autonomously occurs in case of Comm Fault c) Fly under Manual Control occursin case of Comm Fault d) Return to Base Autonomously occursafter Fly under Manual Control None Time's up
